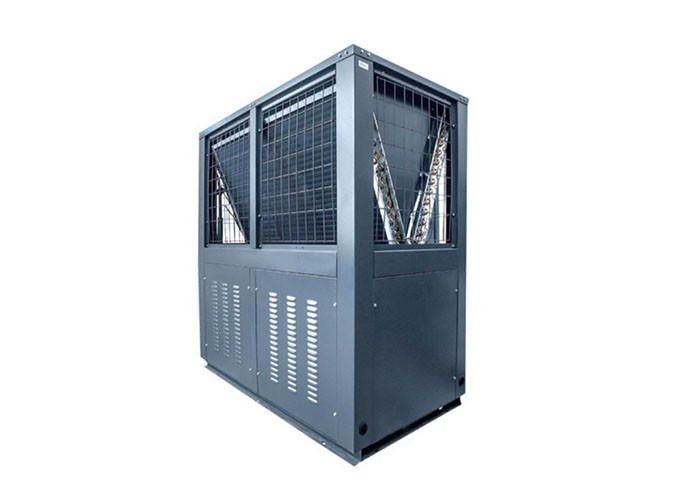

Air source heat pump

Air source heat pump (chiller) is a central air conditioning unit with air as cold and heat source and water as carrier refrigerant. Air source heat pump unit with 35kw, 65kW, 80kW, 130kW, 160kW as the benchmark module, realizes the arbitrary combination of 16 modules, forming a combination product in the range of 35kw-2560kw. It has the advantages of environmental protection, simple installation, flexible, moderate investment, short construction period, etc. now it is more and more widely used in animal husbandry and breeding industry.

Technical parameters of standard air heat source pump (cold water)

Product model			AWK35*-1	AWK65*-1	AWK130*-1
Name refrigeration Name heating	Cooling capacity	KW	33	65	130
	Rated power	KW	10.5	20.2	40.5
	Energy efficiency ratio（oop）	/	3.14	3.22	3.21
	Heating capacity	KW	35	70	140
	Rated power	KW	10.6	20.9	41
Maximum current		A	25	50	100
Power supply form		-	3N-380V/50Hz
Operation control mode		-	fully automatic
compressor	type	-	Scroll compressor
compressor	number	EA	1	2	4
Air side heat exchanger	Type of heat exchanger	-	Cracked (corrugated) fins + high efficiency internally ribbed steel pipe
	Fan type	-	Axial flow fan
	Fan power	KW	0.85	0.85x2	2.2x2
	Number of fans	EA	1	2	2
Water side heat exchanger	type	-	Shell and tube heat exchanger
	Under pressure	Mpa	1
	discharge	M3/h	5.7	11.2	22.4
	pipe diameter	-	DN32	DN50	DN65
	Water pressure loss	kpa	50	50	50
Refrigerant	form	-	R410a（R22）
Refrigerant	Filling capacity	kg	6	11	22
Scope of operation		-	Outdoor temperature: Refrigeration 18 ~ 48 ° C / heating - 15 ~ 25 ° C Outlet temperature of cold and hot water: Refrigeration 4 ~ 15 ° C / heating 23 ~ 55 ° C / heating 23 ~ 55 ° C (65 ° C)
safety protection		-	High and low pressure protection, exhaust humidity protection, water cut-off protection, antifreeze protection, fan overheating protection, compressor over-current protection, phase loss and phase sequence protection
Net size	long	mm	1155	2250	2400
	wide	mm	860	860	1150
	high	mm	1856	1856	2250
Unit weight (net weight)		kg	300	560	1060

Note: (1) nominal refrigeration condition: outlet water temperature 7 ° C. The dry bulb temperature is 35 ° C. The water flow rate is 0.172m3 / (n.kw)

(2) Nominal refrigeration condition: outlet water temperature 45 ° C. Ambient temperature: dry bulb temperature 7 ° C. 172mkw / (0.173 ° C water ball)

(3) If the above parameters are changed. Subject to notice

Technical parameters of ultra low temperature air heat source pump (cold water)

Product model			AWK35*	AWK65*	AWK80*	AWK130*	AWK160*
Nominal refrigeration	制冷量	KW	33	65	75	130	150
	额定功率	KW	10.5	20.1	23.3	40.2	46.7
	能效比（oop）	/	3.14	3.23	3.22	3.23	3.22
Nominal heating	制热量	KW	35	70	80	140	160
Nominal heating	额定功率	KW	10.6	20.9	23.5	41	47
Nominal heating at low temperature	制热量	KW	23	45	50	90	100
Nominal heating at low temperature	额定功率	KW	9.6	18.8	20.8	37.5	41.7
Maximum current		A	25	50	65	100	130
Power supply form		-	3N-380V/50HZ
Operation control mode		-	fully automatic
compressor	type	-	Scroll compressor
compressor	number	EA	1	2	2	4	4
Air side heat exchanger	Type of heat exchanger	-	Crack (ripple) fin + high efficiency internal thread copper tube
	Fan type	-	Axial flow fan
	Fan power	KW	0.85	0.85x2	0.85x2	2.2x2	2.2x2
	Number of fans	EA	1	2	2	2	2
Water side heat exchanger	type	-	Shell and tube heat exchanger
	Under pressure	Mpa	1
	discharge	m3/h	5.7	11.2	13.0	22.4	26.0
	pipe diameter	-	DN32	DN50	DN65	DN65	DN80
	Water pressure loss	kpa	50	50	50	50	50
Refrigerant	form	-	R410a（R22）
Refrigerant	Filling capacity	kg	6	11	13	22	26
Operating range		-	Outdoor temperature: Refrigeration 18 ~ 48 ° C / heating - 25 ~ 25 ° C Outlet temperature of cold and hot water: Refrigeration 4 ~ 15 ° C / heating 23 ~ 55 ° C (65 ° C)
safeguard		-	High and low pressure protection, exhaust humidity protection, water cut-off protection, antifreeze protection, fan overheating protection, compressor over-current protection, phase loss and phase sequence protection
Net size	long	mm	1155	2250	2250	2400	2400
	wide	mm	860	860	860	1150	1150
	high	mm	1856	1856	1856	2250	2250
Unit weight (net weight)		kg	300	560	585	1060	1110

Note: (1) nominal refrigeration condition: outlet water temperature 7 ° C. The dry bulb temperature is 35 ° C. The water flow rate is 0.172 m3 / (n.kw).

(2) Nominal heating conditions: outlet water temperature 45 ° C, ambient temperature: dry bulb 7 ° C, wet bulb 6 ° C, water flow rate 0.172 m3 / (n.kw).

(3) Low temperature nominal heating conditions: outlet temperature 41 ° C, ambient temperature: dry bulb - 12 ° C, water flow of 0.172 m3 / (n.kw).

(4) The above parameters are subject to change without prior notice.
